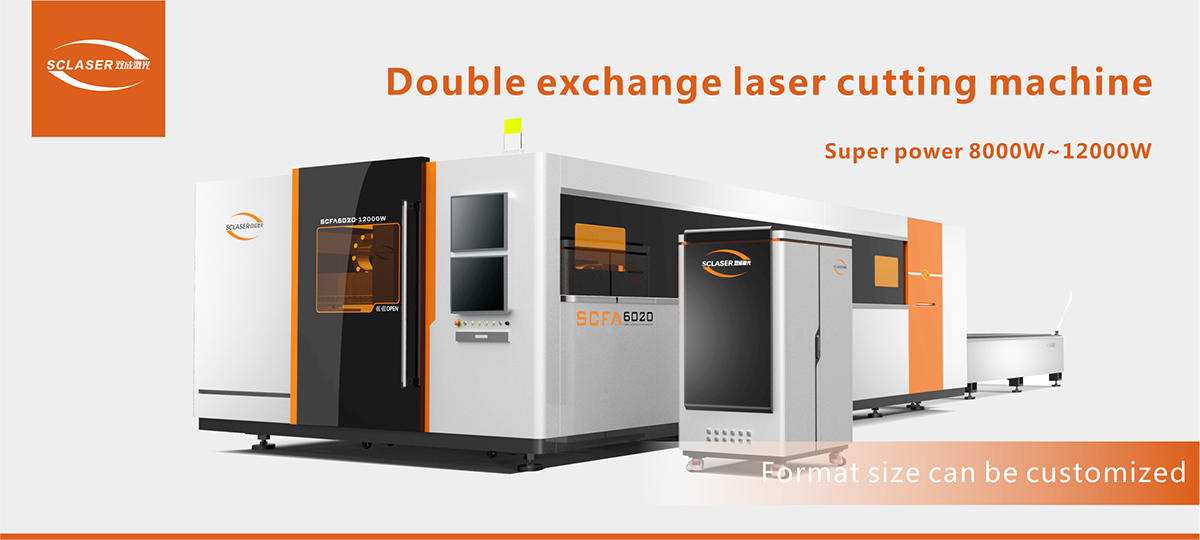

Optical Fiber Laser Cutting Machine SC-FA12000W
Optical Fiber Laser Cutting Machine SC-FA12000W
Optical Fiber Laser Cutting Machine SC-FA12000W
Optical Fiber Laser Cutting Machine SC-FA12000W
Optical Fiber Laser Cutting Machine SC-FA12000W
Optical Fiber Laser Cutting Machine SC-FA12000W

Glacier white + vigor orange, simple and powerful, science and technology and art, combined with Hanyang manufacturing and Wuhan heavy industry essence, the precision bed is as stable as Mount Tai, the whole machine craftsmanship, the mechanical proportion is designed according to the human body mechanics, the simple and powerful, elegant shape curve is designed to fit the body, combined with glacier white + vigor orange sheet metal design, supplemented by double sliding doors, highlighting the sense of technology and priority of the equipment Feeling, the whole beautiful and generous, humanized operation. The powerful waterproof and breathable protection makes the space operation more comfortable and safe, makes the work and operation more interesting, has good interaction, is full of fun operation mode and pleasant mood, and can improve work efficiency.

Consulting Hotline: 153-8715-8873

Email: whsclaser@163.com

  • Product description
  • Technical parameters
  • Sample show
  • Video show

Optical Fiber Laser Cutting Machine SC-FA12000W


Equipment characteristics

1. Low cost: power consumption is energy-saving, maintenance is convenient, later use cost is low, and recovery of investment cost is fast.

2. High precision, high speed, high cost performance, fully meet the needs of sheet metal processing market;

3. High performance laser cutting head, vacuum level sealing and pollution prevention, optimized fiber stability design;

4. The whole bed is welded with high-quality carbon steel plate. After stress relief annealing of staggered honeycomb welding structure, rough machining is carried out, and then vibration aging treatment is carried out. Natural aging treatment can completely eliminate the stress of welding and processing. It has good rigidity, high precision, and can be kept stable for a long time without deformation for 20-50 years;

5. Intelligent and simple operation: integrated human-oriented design, simple operation, convenient maintenance, return industry to science and technology, and simplify complexity.




Optical Fiber Laser Cutting Machine SC-FA12000W





Model

SC-FA16000W

Processing width (length × width)

4020

6020

6025

Outline Size

Overall shape

10500×3760×2200

15500×3760×2200

15500×4025×2200

Machine parameters



Cutting range

4000mm*2000mm

6000mm*2000mm

6000mm*2500mm

Travel Y-axis

4050mm

6050mm

6050mm

Travel X-axis

2030mm

2030mm

2530mm

Travel Z-axis

260mm

260mm

260mm

Laser parameters

Laser

Ruike / IPG Fiber Laser (Optional))

Laser wavelength

1064nm

Power

16000W

Cutting ability

Cutting thickness of carbon steel

40mm

Stainless steel cutting thickness

40mm

Cutting thickness of aluminum plate

40mm

Copper plate cutting thickness

16mm

Notch width

0.10mm-0.20mm

Accuracy

Geometric positioning accuracy

±0.03mm/m

Repeated positioning accuracy

±0.02mm/m

Power parameter

Phase number

Three-phase

Frequency

50HZ

Rated voltage of power supply

380V±5%

Protection level of general power supply

Level Four

Cooling system

Cooling mode

Water-cooling





双交换工作台光纤激光切割机SC-FA1000W


双交换工作台光纤激光切割机SC-FB6020-3000W
