Shuangcheng laser launched the hand-held optical fiber laser welding machine

Date:

2019-11-28

Views:

0

With the continuous deepening of laser industry, everyone seems to pay more attention to laser welding machine than laser cutting machine, and major manufacturers are also paying attention to the trend of laser welding machine. In May this year, Shuangcheng laser launched a hand-held laser welding machine, and Shuangcheng laser has also made a market plan for the laser welding machine.

双成激光推出手持光纤激光焊接机

working principle:

Laser welding is to use high-energy laser pulse to heat the material in a small area. The energy radiated by laser is diffused through the inside of the material through heat transfer, and the material is melted to form a specific melting pool. It is a new type of welding method, mainly for the welding of thin-walled materials and precision parts. It can realize spot welding, butt welding, stack welding, seal welding, etc., with high depth width ratio, small weld width, small heat affected area, small deformation, fast welding speed, flat and beautiful weld, no need to deal with or simply deal with after welding, high weld quality, no porosity, precise control, focusing light point Small, high positioning accuracy, easy to achieve automation.



双成激光推出手持光纤激光焊接机

Product features:

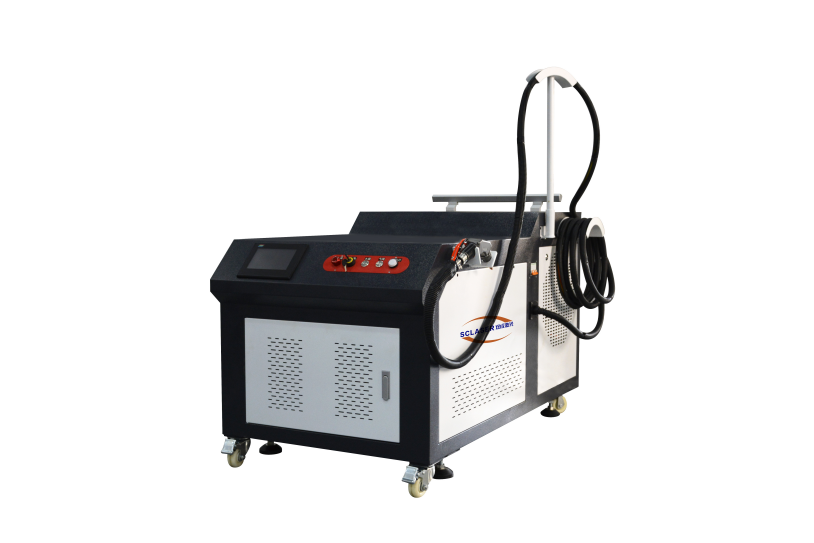

1. Integrated cabinet integrates laser, chiller rental, software control, etc., with unique advantages of small floor area, convenient movement, strong functionality, etc

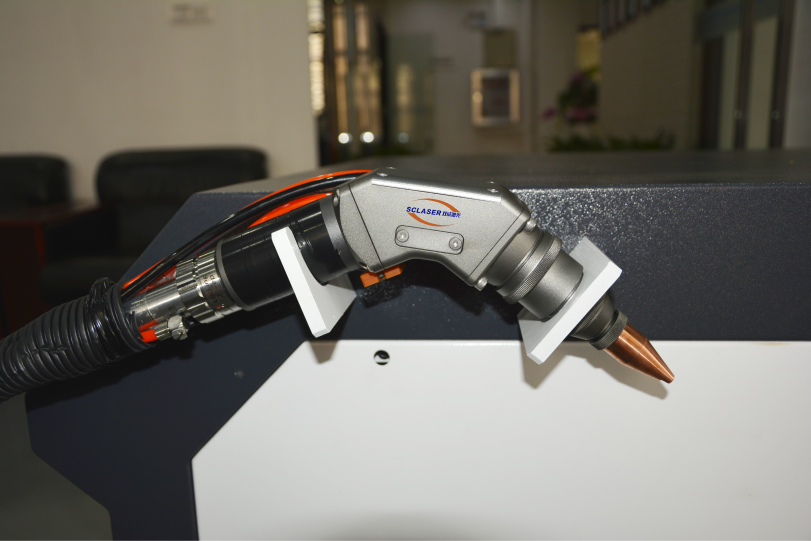

2. The hand-held welding joint is equipped with 5m-10m original optical fiber, which is flexible and convenient

3. Hand held operation mode, special welding nozzle can be assembled to realize welding at any angle at any part of the workpiece

4. It can match with many kinds of laser sources, apply to many kinds of workpieces with technological requirements, weld once forming, basically no deformation, and meet the requirements of high quality products;

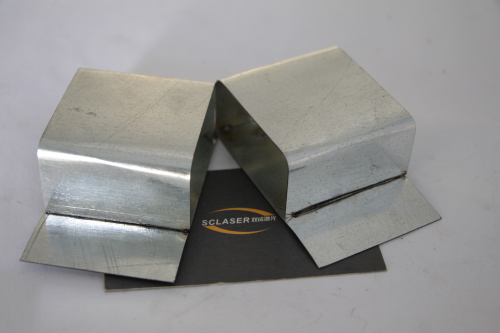

5. The weld is beautiful, free of welding scar, discoloration and subsequent grinding;

6. The welding is firm, and the strength of the welding seam reaches or even exceeds that of the base metal itself;

7. The welding is firm, and the strength of the welding seam reaches or even exceeds that of the base metal itself;

8. It is suitable for tailor welding, overlap welding, internal and external fillet welding, circular arc welding, irregular shape welding, etc;

9. The whole set of equipment has strong functionality, meets the ergonomic design, and is suitable for various working environment scenarios;

10. Special laser safe operation and protection function to ensure the safety of operators during work;

11. The operation is simple, easy to learn and fast to start, the operator's technical threshold is not high, and the labor cost is saved.


双成激光推出手持光纤激光焊接机

Application Industry:

Widely used in kitchen and bathroom industry, home appliance industry, advertising industry, mold industry, stainless steel products industry, stainless steel engineering industry, door and window industry, arts and crafts industry, home appliances industry, furniture industry, auto parts industry, etc.

双成激光推出手持光纤激光焊接机



Technical Parameter:

Model

   SC-FH500

 SC-FH750

SC-FH1000

SC-FH1500

Laser Power

500W

750W

1000W

1500W

Working Mode

Continuous or Modulated



Laser Wavelength

1064NM

Beam Quality

M2<1.1

M2<1.15

M2<1.2

M2<1.2

Output power stability

±2%

±2%

±2%

±2%

Power requirements

AC220V±10%

50/60Hz

AC220V±10%

50/60Hz

380V±10%

3P+PE

380V±10%

3P+PE

Whole machine power

≤5KW

≤6KW

≤7KW

≤9KW

Cooling system

Customized industrial double temperature double control chiller



Fiber length



5M-10MCustomizable



Working environment temperature range



15~35 ℃

Working environment humidity range



< 70%No condensation



Welding thickness range



MAX1mm

MAX1.5mm

MAX2mm

MAX3mm

Applicable materials



Carbon steel, stainless steel, galvanized sheet, etc



Weld requirements



<0.2mm

Welding speed



0~120 mm/s
